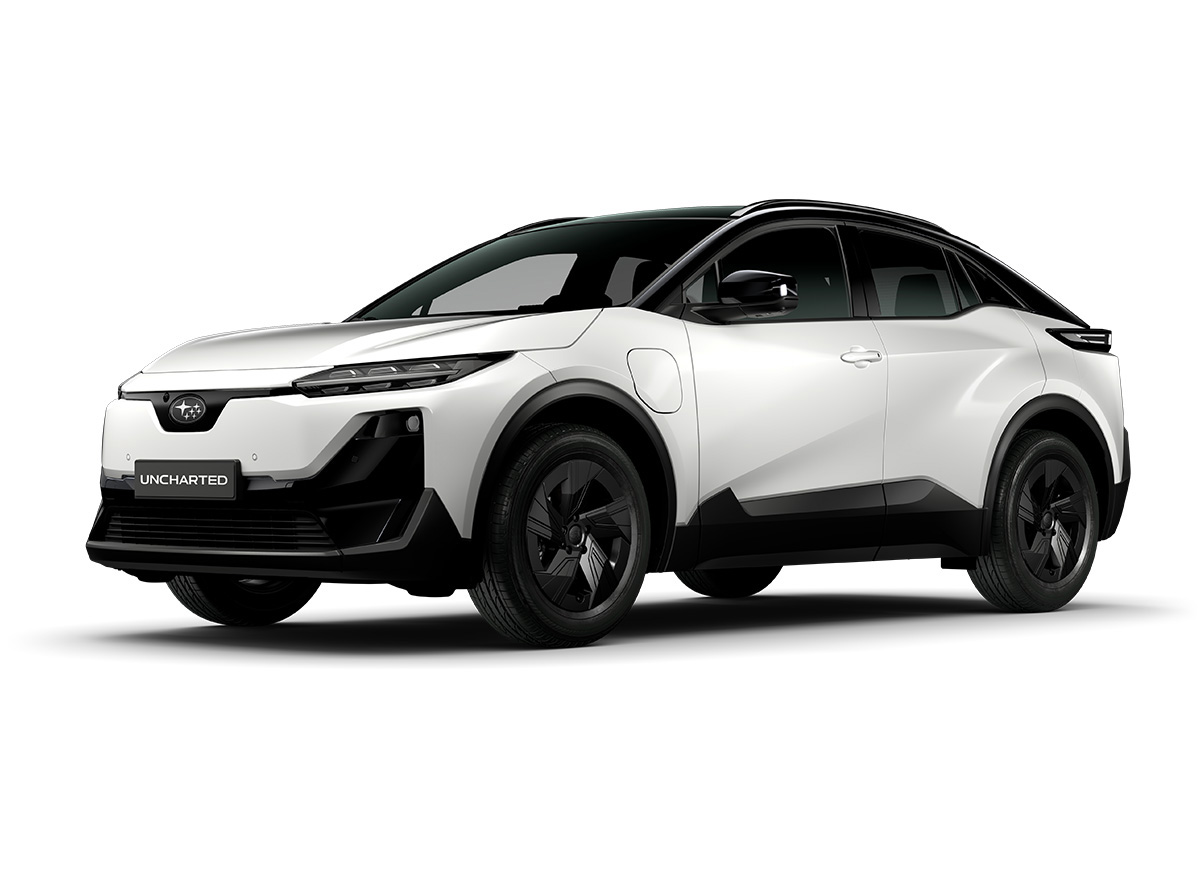

UNCHARTED

• Max. speed (km/h)160
• Acceleration (0-100 km/h) (sec.)7.3
• Electric driving range per charge (WLTP) (km)588

• Main drive battery typeLithium-ion battery
• Total battery capacity (Compliance with the IEC 62660-1 standard.) (kWh)77.0
• Nominal voltage (V)384.8
• Number of cells (Units)104

• AC charging : Max. charging power (kW)3-phase charger: 22

• Charging connector : TypeCCS2 (TP+DC)
• Charging connector : LocationFront

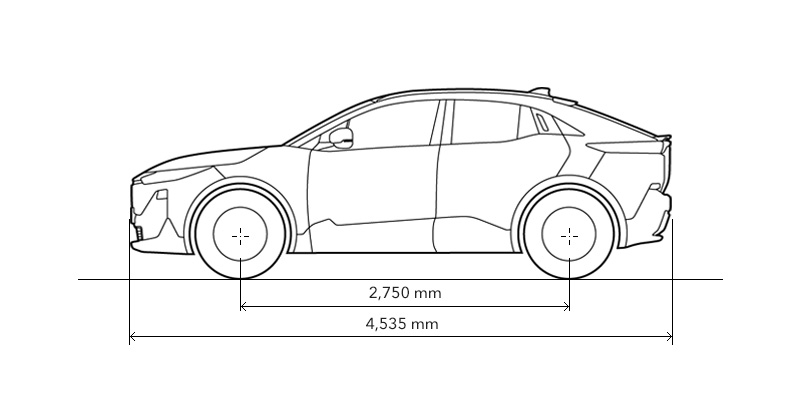

• Overall length (mm)4,535

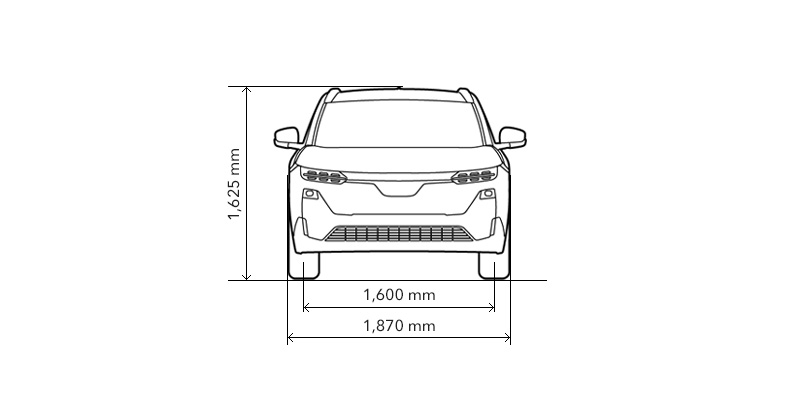

• Overall width (mm)1,870
• Overall height (mm)1,625
• Wheelbase (mm)2,750

• Track : Front (mm)1,600
• Track : Rear (mm)1,610

• Minimum ground clearance (at kerb weight) : Front spats (mm)172
• Minimum ground clearance (at kerb weight) : Front under cover (mm)211

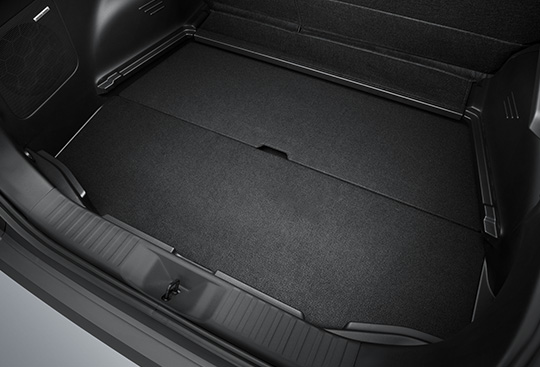

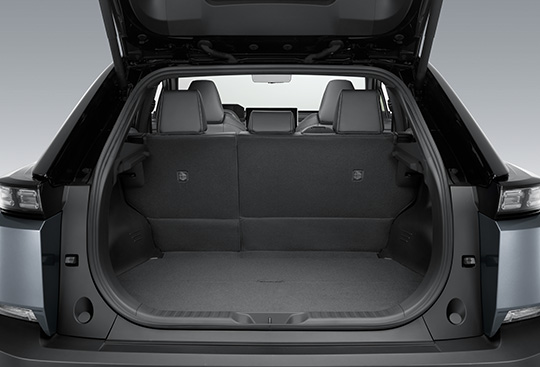

• Cargo volume^* (lit.)403
• Seating capacity (persons)5

• Kerb weight (kg)1,915

^* Measured by VDA (V211)

Vehicle kerb weight varies according to the types of optional equipment included.

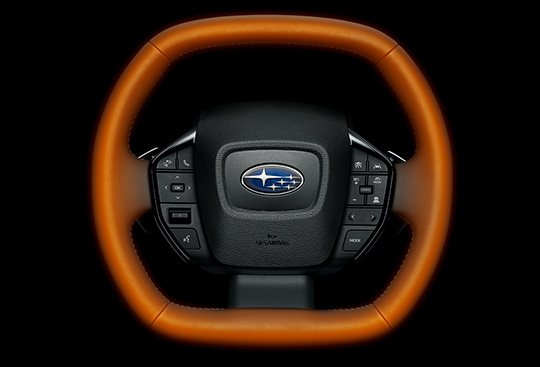

• SteeringElectric power-assisted rack-and-pinion

• Suspension (4-wheel independent) : FrontMacpherson strut type
• Suspension (4-wheel independent) : RearDouble-wishbone type

• Minimum turning circle at tyre (radius) (m)5.5

• Brakes : FrontVentilated disc brakes
• Brakes : RearVentilated disc brakes

• DrivelineFront-Wheel Drive type

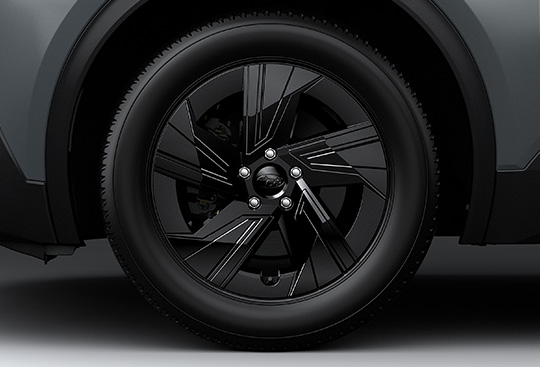

• Tyre/wheel size235/60R18, 18×7.5”J
